Brand Name : | BVEM |
Model Number : | BJZC-BFS-400-180 |
Certification : | ISO 9001:2015 |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 300 sets per year |
Delivery Time : | 30 work days |
BVEM Construction Equipments of Bottom Feed Vibroflot Wet and Dry Method application
The Bottom Feed Electrical Vibroflot Spec. | |
Rotation speed(rpm) | 1200-1800 |
Working pile diameter (mm) | 900-1200 |
System pressure(bar) | 6 |
Hopper volume(m³) | 1.2 |
Pipe diameter(mm) | DN250 |
Control type | Inverter Control |

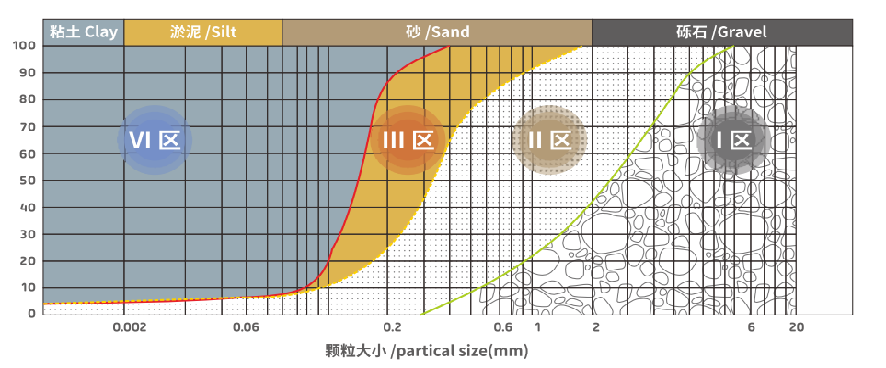

Vibroflotation Applicable Scope by Soil Classification
1. Vibro-compaction can be proposed but big rocks may be sufferred
2. Non-filling Vibro-compaction can be applicated
3. Both non-filling Vibro-compaction and filling Vibro-compaction
are the possible applicable solution
4. Vibro-replacement (Stone column) can be applicated
What is Bottom Feed Vibroflotation
A special vibroflotation method which can realize the filling material direct reaching at the real-time borehole bottom position of pile making through the feeding pipe attached to the vibroflotation equipment, and carries out the stone column or sand pile making.

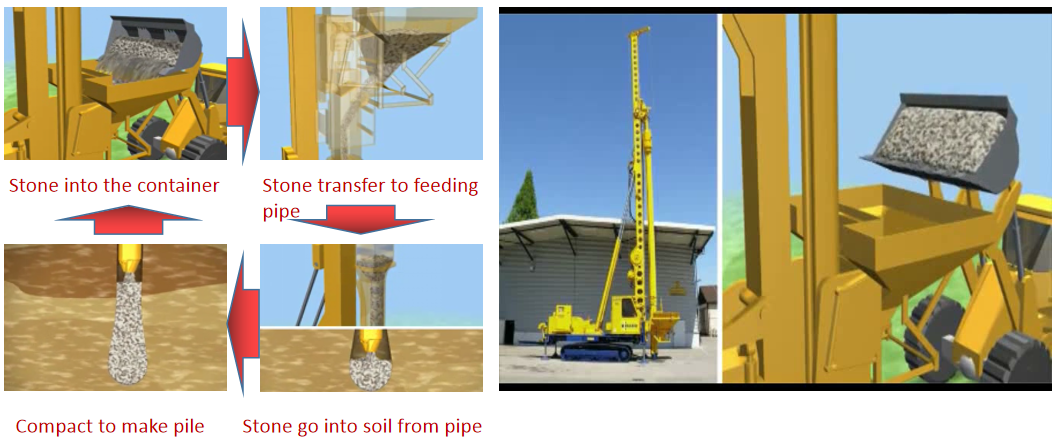

Working Principle of Vibro-BF
![]() |
