    377mm 180kw Vibro Compaction Piling Replacement Pile Driver

    Ask Lasest Price
    Brand Name : BVEM
    Model Number : BJV180E-377
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : L/C, T/T, MoneyGram
    Supply Ability : 300 sets per year
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

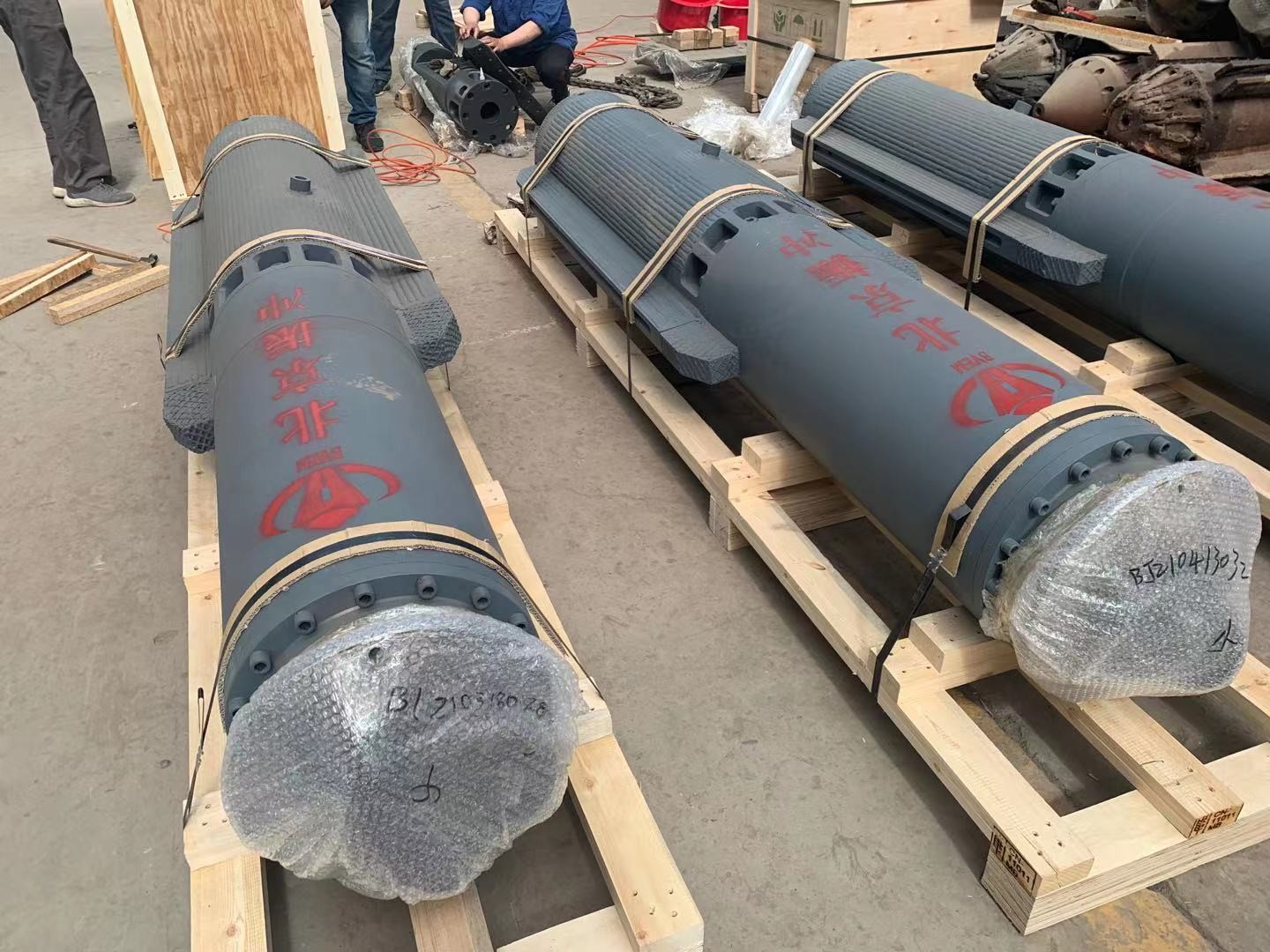

    377mm 180kw Vibro Compaction Piling Replacement Pile Driver


    BVEM Vibro compaction piling vibroflot 377mm 180kW replacement pile driver


    75- 180 kW Vibro float Spec.
    TypeBJV180E-377BJV75E-426BJV100E-426
    Power/kW18075100
    Rotation speed/rpm1450-180014501450
    Amplitude (at Tip)/mm211617.2
    Centrifugal force/kN180-276180208
    Weight /kg214020182073
    Diameter/mm377426426
    Length/mm348527832883

    Soil improvement


    The main goal of most soil improvement techniques used for reducing liquefaction hazards is to avoid large increases in pore water pressure during earthquake shaking. This can be achieved by densification of the soil and/or improvement of its drainage capacity.


    Vibroflotation involves the use of a vibrating probe that can penetrate granular soil to depths of over 100 feet. The vibrations of the probe cause the grain structure to collapse thereby densifying the soil surrounding the probe. To treat an area of potentially liquefiable soil, the vibroflot is raised and lowered in a grid pattern. Vibro Replacement (right, HB) is a combination of vibroflotation with a gravel backfill resulting in stone columns, which not only increases the amount of densificton, but provides a degree of reinforcement and a potentially effective means of drainage.


    377mm 180kw Vibro Compaction Piling Replacement Pile Driver



    BVEM Company Honor


    China first use of 75KW vibrator for the 30-meter depth sand soil treatment(three gorges project)
    China first use of hydraulic vibrator for the treatment of the 240-meter chimney foundation
    China first use of hydulic vibrator for the treatment of 32m depth foundation of hydraulic power station
    The first one in China who treated the base of oil storage tank with a diameter of more than 60m by vibroflotation method


    BVEM· The top-level researcher of Vibrator in China


    Researched and produced vibrators in power of 30KW,55KW,75KW since 1977 to 2005
    Researched and produced 150kw vibrator in 2006
    Researched and produced 180kw vibrator in 2009
    Produced Bottom Feed Vibrator with double lock pressure bunker in 2012
    Researched and produced 260kw vibrator in 2014
    Researched and produced Z125 Hydraulic-driven vibrator in 2014
    Lauched Vibrator performance testing equipment in 2014


    377mm 180kw Vibro Compaction Piling Replacement Pile Driver
