    Stone Column Pile Driving Vibroflot Equipment 75kw 426mm

    Ask Lasest Price
    Brand Name : BVEM
    Model Number : BJV75E-426
    Certification : ISO 9001:2015
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 600 sets per year
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Stone Column Pile Driving Vibroflot Equipment 75kw 426mm


    BVEM Professional Vibroflotation Equipment Stone Column Pile Driving Machine 75kW 426mm


    The Top Feed Electric Vibroflot Spec.
    TypePower
    (kW)
    Rated current(A)Max rotation speed(rpm)Max amplitude
    (mm)
    Vibration power(kN)Weight (kg)Outer diameter(mm)Length(mm)
    BJV75E-4267514814501618020184262783
    BJV130E-426130255145017.220823204262963
    BJV180E-426180350145018.927625864263100

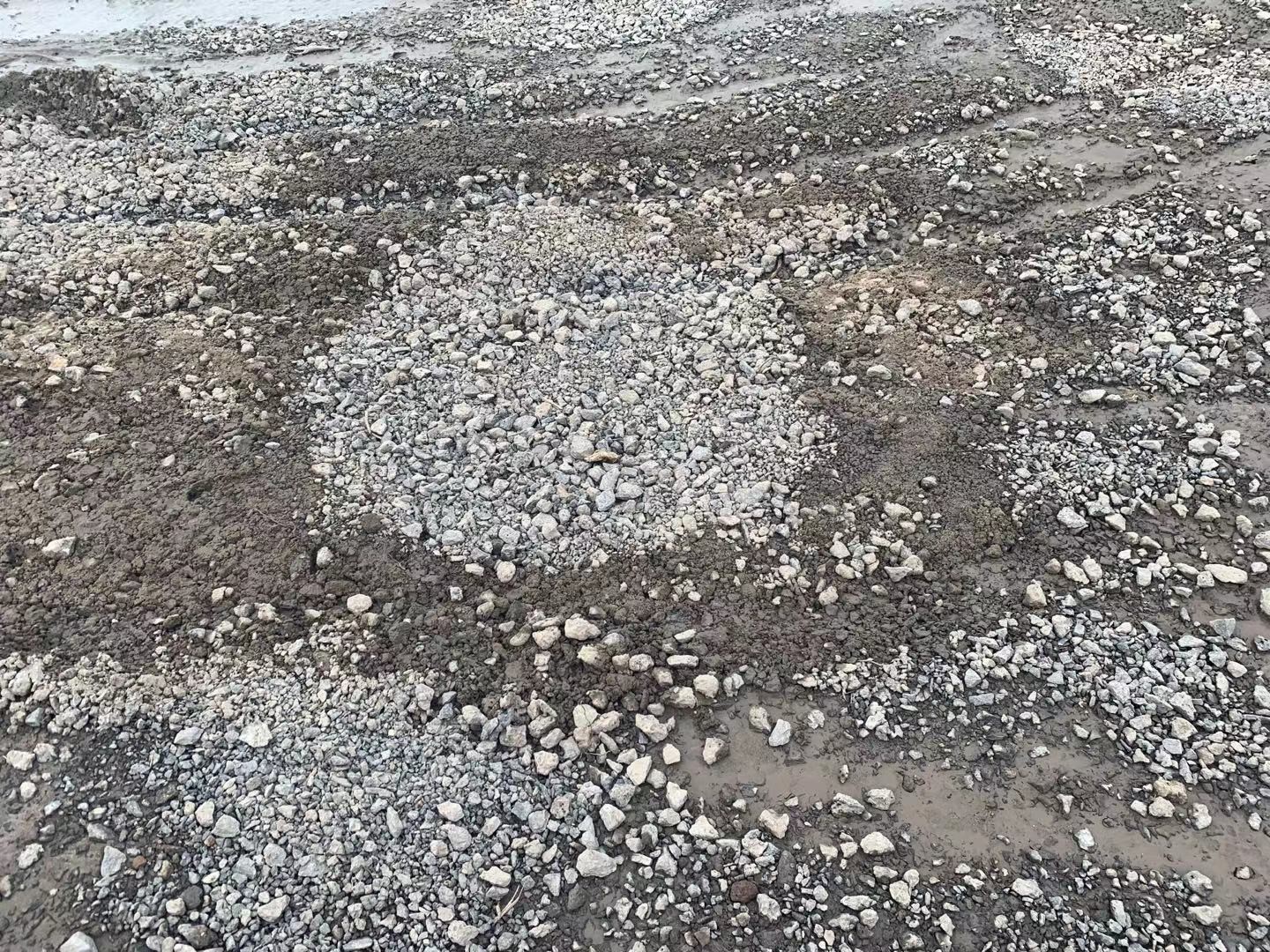

    BVEM | CaoDian Rubber Dam project vibro-replacement stone column construction on north canal XiangHe period


    This vibro-replacement stone column construction is carrying out by BVEM. The measured buried depth of the stable groundwater level in the engineering area is 2.00 ~ 5.90m. After testing, the environmental water has sulfate type weak corrosivity to concrete.

    The whole geology is Sandy. The lithology of the stratum is mainly sandy loam and sand. Bottom layer is four layers of medium fine sand liquefaction layer. The foundation treatment depth is required to be within 1m below the bottom of liquefaction layer.

    The project adopts equilateral triangle pile arrangement, with pile diameter of 0.8m, pile depth of 15m, sheet pile spacing at the bottom of rubber dam of 2.5m, and retaining wall pile spacing on both banks of 2.0m. The filling amount per linear meter of pile body shall not be less than 0.7m3, and the construction period of vibro replacement stone column is 38500m, with a total construction period of 30 days.

    At present, six units of BVEM 75kW vibroflot devices are working in this project at the same time.
