Brand Name : | BVEM |
Model Number : | BJV180E-377 |
Certification : | ISO 9001 |
Price : | Negotiable |
Payment Terms : | L/C, T/T, MoneyGram |
Supply Ability : | 300 sets per year |
Delivery Time : | 7-10 work days |
BVEM big power 180kW vibro pile foundation treatment device used for replacement stone column
75- 180 kW Vibro float Spec. | |||
Type | BJV180E-377 | BJV75E-426 | BJV100E-426 |
Power/kW | 180 | 75 | 100 |
Rotation speed/rpm | 1450-1800 | 1450 | 1450 |
Amplitude (at Tip)/mm | 21 | 16 | 17.2 |
Centrifugal force/kN | 180-276 | 180 | 208 |
Weight /kg | 2140 | 2018 | 2073 |
Diameter/mm | 377 | 426 | 426 |
Length/mm | 3485 | 2783 | 2883 |
Vibro compaction technology
Under the effect of vibration, the saturated sand soil liquefaction
happen,which make the sand particles re-arranged and the soil
interspace reduced.
Boring
By vibration and the flushing of water and/or air, the vibroflot
penetrates to the designed depth.
Compaction
Compact the soil section by section up to the gound according to
the requirements of the compaction current, compaction time and
sectional compaction length.

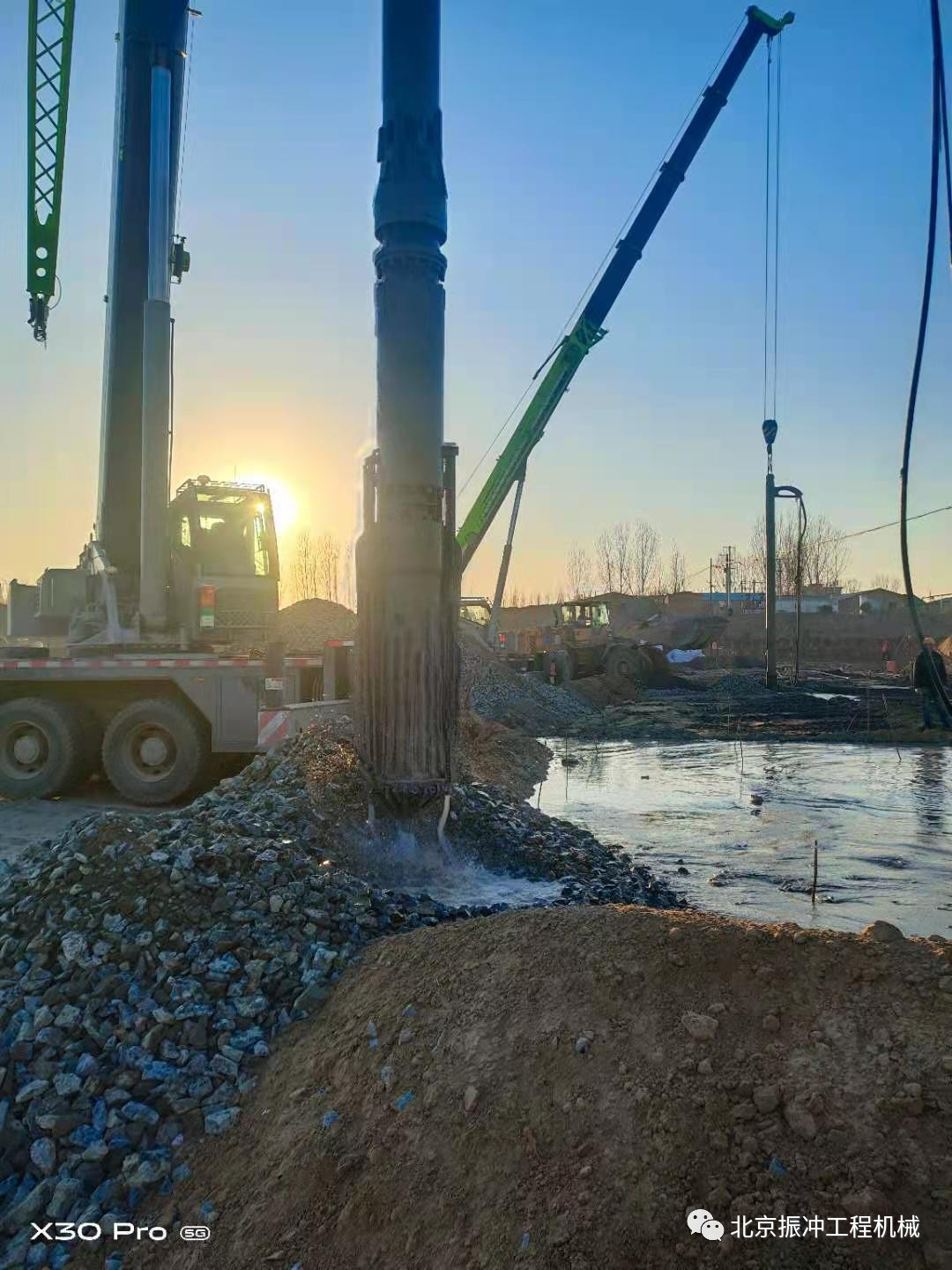

Vibro replacement stone column method
Jet water and vibrate by vibroflot to form holes. Fill in pile
holes by section with solid filling materials such as gravel
(cobble) etc., to finally form composited foundation.
Boring
By vibration and the flushing of water and/or air, the vibroflot
penetrates to the designed depth.
Backfill
Fill stones into the bore-hole, and compact section by section up
to the ground according to the requirements of compaction current
and the sectional compaction length.
BVEM Company Honor
China first use of 75KW vibrator for the 30-meter depth sand soil
treatment(three gorges project)
China first use of hydraulic vibrator for the treatment of the
240-meter chimney foundation
China first use of hydulic vibrator for the treatment of 32m depth
foundation of hydraulic power station
The first one in China who treated the base of oil storage tank
with a diameter of more than 60m by vibroflotation method
![]() |
