180kw 426mmElectrical Vibroflotation device working vibro replacement engineering

China vibroflot supplier

With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.

Now more and more VIBROFLOTATION application are being adopted in soil construction, especially in infrastructure construction area.

As the leader of VIBRIFLOTATION industry in China, BVEM focus on VIBRIFLOTATION market and formed a business platform with VIBRIFLOTATION technique as core, on which there are three main business including the manufacturing and integration of VIBRIFLOTATION equipment, sales and service for VIBRIFLOTATION equipment and foundation improvement construction undertaking.

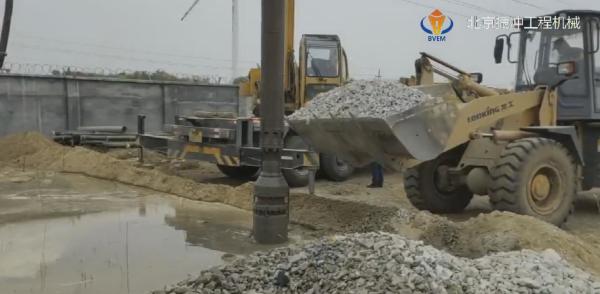

Vibroflotation Stone Column Project of Changyi oil transportation station in Yanzi pipeline expansion and reconstruction project

The proposed buildings and structures are a 35KV substation, a 200m ~ 3 pressure relief tank foundation, a one storey process equipment area and a one storey oil transfer pump shed, with a total construction area of about 2000 m2. The proposed site is flat and open, with the maximum elevation of 3.91M, the minimum elevation of 2.86m, and the relative surface elevation difference of 1.05M. The landform type belongs to alluvial proluvial plain landform. There are backfill gravel soil on the surface of local area of the site, with the backfill thickness of about 10cm. The surface layer of most areas is plain fill, and under it are silty fine sand, medium sand, silt, medium sand and silty clay.

According to the stratum characteristics and design requirements of the construction area of the project, the vibroflotation pile length of Changyi oil transportation station project of Yanzi pipeline expansion and reconstruction project is 9 meters, the pile diameter is 800 mm, and the pile spacing is 1.6-2.0 meters. The total length is about 10318.5 linear meters. The 130kW vibroflotation device produced by our company is selected as the main construction equipment.
