    Soil Improvement 130KW Vibro Piling Machine Electric Vibroflotation

    Ask Lasest Price
    Brand Name : BVEM
    Model Number : BJV130E-377
    Certification : ISO 9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T, MoneyGram
    Supply Ability : 600 sets per year
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Soil Improvement 130KW Vibro Piling Machine Electric Vibroflotation


    Economic vibro piling equipment used for foundation treatment BJV130E-377 vibroflot


    The Top Feed Electric Vibroflot Spec.
    TypePower
    (kW)
    Rated current(A)Max rotation speed(rpm)Max amplitude
    (mm)
    Vibration power(kN)Weight (kg)Outer diameter(mm)Length(mm)
    BJV130E-3771302551450-180019180-27619003773355

    Beijing vibroflotation engineer machinery co.,ltd

    The top-level researcher of Vibrator in China


    Researched and produced vibrators in power of 30KW,55KW,75KW since 1977 to 2005
    Researched and produced 150kw vibrator in 2006
    Researched and produced 180kw vibrator in 2009
    Produced Bottom Feed Vibrator with double lock pressure bunker in 2012
    Researched and produced 260kw vibrator in 2014
    Researched and produced Z125 Hydraulic-driven vibrator in 2014
    Lauched Vibrator performance testing equipment in 2014


    Vibro compaction
    Under the effect of vibration, the saturated sand soil liquefaction happen,which make the sand particles re-arranged and the soil interspace reduced.
    Boring
    By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
    Compaction
    Compact the soil section by section up to the gound according to the requirements of the compaction current, compaction time and sectional compaction length.

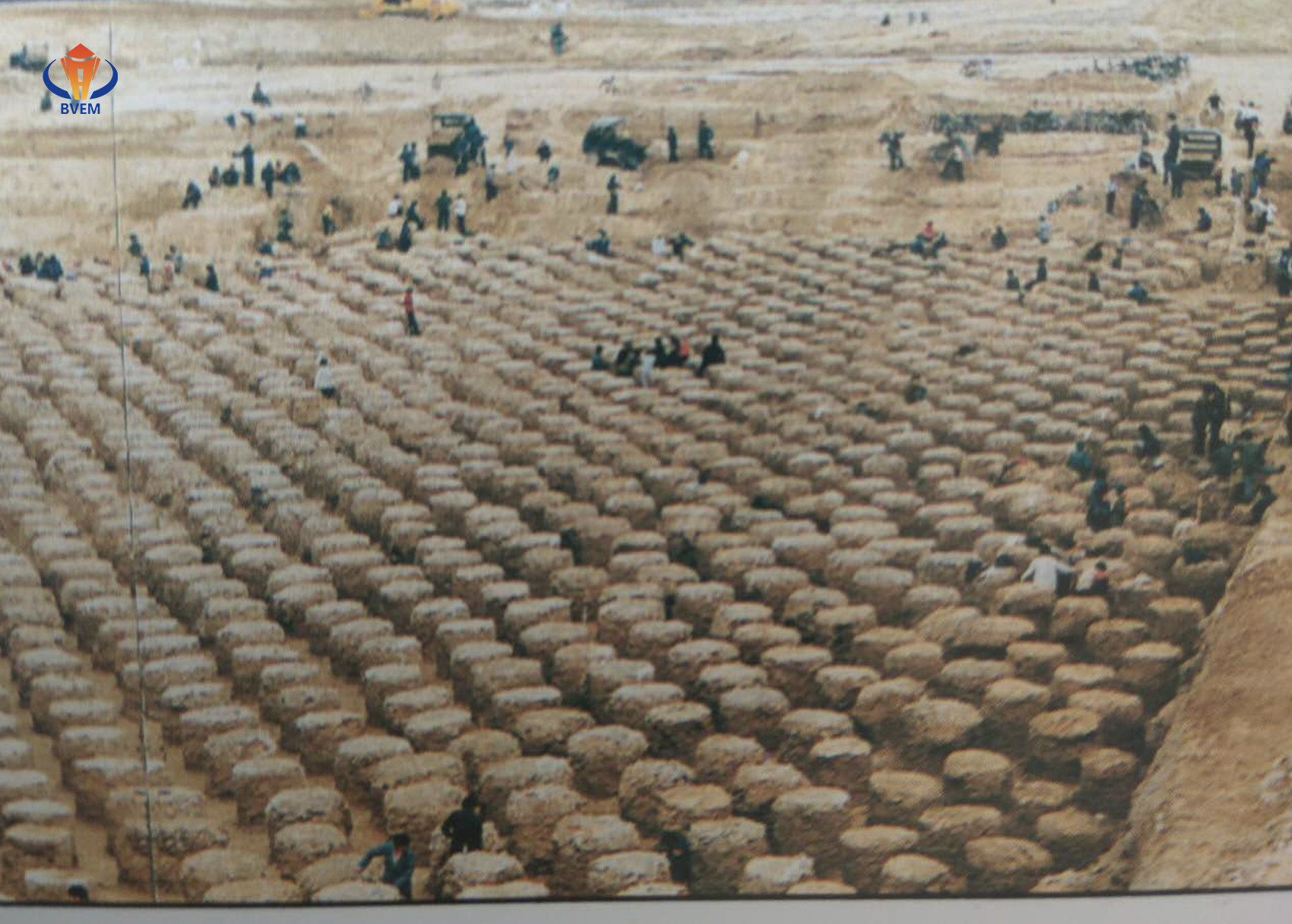

    Vibro replacement
    Jet water and vibrate by vibroflot to form holes. Fill in pile holes by section with solid filling materials such as gravel (cobble) etc., to finally form composited foundation.
    Boring
    By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
    Backfill
    Fill stones into the bore-hole, and compact section by section up to the ground according to the requirements of compaction current and the sectional compaction length.


    Vibro techniques
    A foundation treatment method by joint action of horizontal vibration and high pressure water to compact the loose sand layer or formed in soft soil of stone column to compose the composite foundation with original soil together.
