    Technique Vibroflotation Equipment Pile Driver Sand Compaction Stone Column Machine

    Ask Lasest Price
    Brand Name : BVEM
    Model Number : BJV180E-426
    Certification : ISO 9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T, MoneyGram
    Supply Ability : 600 sets per year
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Technique Vibroflotation Equipment Pile Driver Sand Compaction Stone Column Machine


    China vibroflotation equipment manufacturer pile driver sand compaction stone column machine


    Vibroflotation Equipment Spec.
    TypeBJV130E-426BJV180E-426
    Power/kW130180
    Centrifugal force/kN208276
    Weight /kg23202586
    Diameter/mm426426
    Length/mm29633100
    Diameter of the work pile/mm(800-1200)(800-1200)

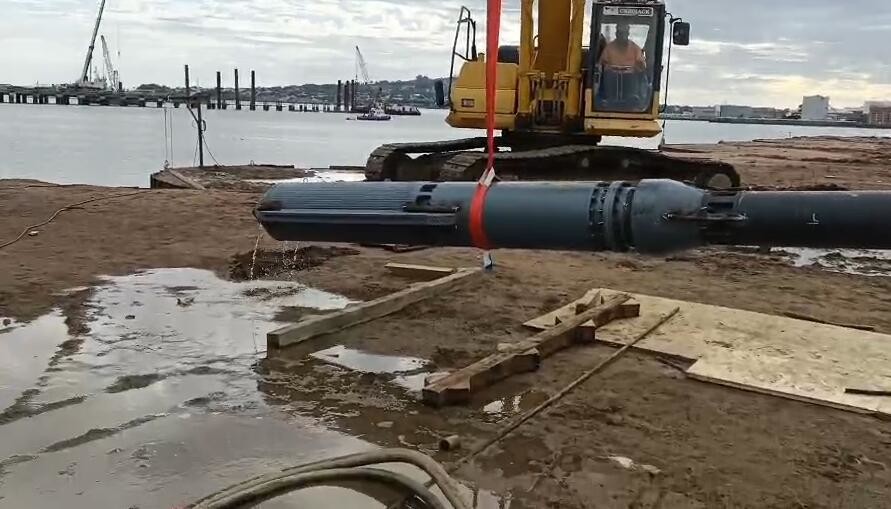

    China Vibroflotation Construction Project Case


    Vibroflotation Stone Column Pile Reinforcement Project under 305m elevation of Longbei fish pond revetment in Bay


    Technique Vibroflotation Equipment Pile Driver Sand Compaction Stone Column Machine Technique Vibroflotation Equipment Pile Driver Sand Compaction Stone Column Machine


    On July 4, 2022, the Vibroflotation Gravel Pile Reinforcement Project of the Bay Longbei fish pond revetment below an elevation of 305 meters undertaken by Beijing vibroflotation Engineering Machinery Co., Ltd. Vibroflotation Gravel Pile and plastic concrete cut-off wall project were successfully completed.


    Our company has developed a new technical field in the water conservancy dam foundation reinforcement project by combining the vibroflotation method with the anti-seepage wall technology, and has been successfully applied in this project. The project mainly takes Vibroflotation Gravel Pile as the composite foundation and the anti-seepage wall as the embankment slope protection to realize the reinforcement of the overall fish pond.


    The total work quantity of the project is 10694.69 meters. In the treatment of Vibroflotation Gravel Piles, our company uses 75kW vibroflotation equipment for operation. The average depth is 13.3 meters, the pile diameter is 0.8 meters, the pile spacing is 2.0 meters, and the pile layout form is rectangular pile layout. Adopt stones with particle size of 0.5-0.7 cm and saturated compressive strength greater than 85mpa, and the bearing capacity of the treated foundation FAK ≥ 150kPa.


    Advantages |vibroflotation (VF)


    Cost effectiveness one of the most cost-effective technologies of strengthening the soil, particularly effective in a situation of deep situated noncohesive soils;

    Comprehensive improvement Improving the geotechnical parameters of the entire volume of compacted soils.

    Control of subsidence the use of VF technology leads to a reduction in the total subsidence and minimize differential subsidences, which greatly contributes to a secure structure foundations;

    Performance one of the few soil strengthening technologies used for layers of considerable thickness, up to 40m depth, compacted in the entire volume of the strengthened soil;

    Hydrotechnical effectiveness the technology is often used in hydraulic engineering constructions like the port floors, strengthening the embankments it is the only effective method to improve soil conditions.


    BVEM· Professional Vibroflot Manufacturer in China


    With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.


    As an professional company in vibroflotation industry, our company can provide users with full process services during the stages of pre-sales and after-sales as well, including vibroflotation design, construction scheme formulation, vibroflot and relevant equipment selection advice, installation and commissioning of the vibroflot, as well as the construction guidance and maintenance training.
