    Security Static Load Tester For Stone Column Gravel Pile Composite Foundation

    Ask Lasest Price
    Model Number : YL-PLT1s
    Price : Negotiable
    Supply Ability : 600 sets per year
    • Product Details
    • Company Profile

    Security Static Load Tester For Stone Column Gravel Pile Composite Foundation

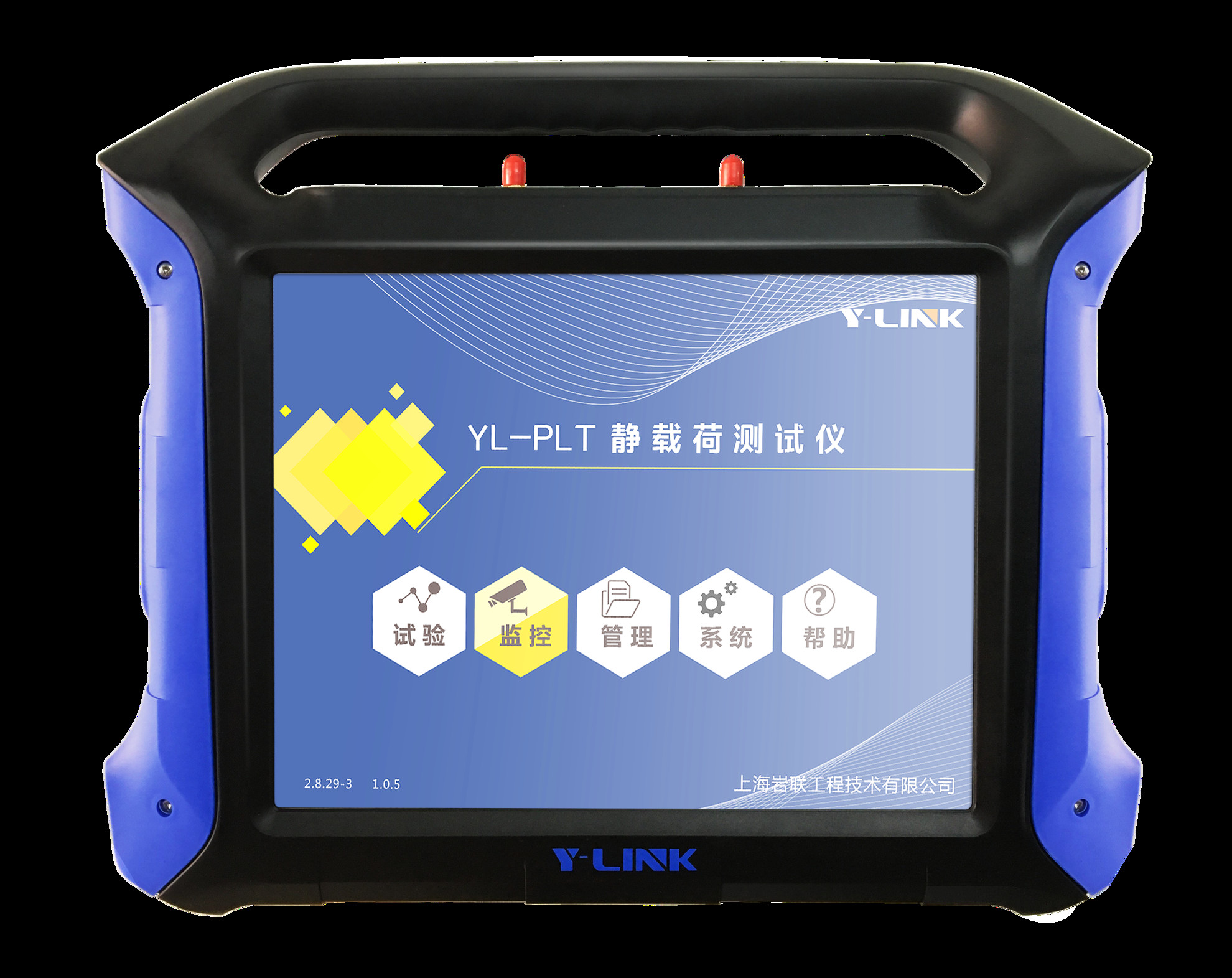

    Static Load tester for stone column gravel pile composite foundation load testing device


    ModelYL-PLT1s
    Main control unitLowpowerembeddedindustrialcomputer
    Display screen1024×768
    Storage8G
    Power supplyDevice(AC220V;DC12.6V),Oil pump (AC380/220V available)
    Measuremen tand control methodWired/Wireless
    Wireless measurement and control
    distance
    >300m
    Video surveillanceIndependent HD camera
    Working temperature-30-55
    Weight1.6kg
    Dimension375mm×300mm×90mm

    Pile load test equipment
    Security Static Load Tester For Stone Column Gravel Pile Composite Foundation
    Integrate the complete set of system equipment required for pile load test to help customers complete one-stop procurement, includes:
    1. Load tester
    2. Hydraulic jack
    3. Hydraulic pipe
    4. Hydraulic power station

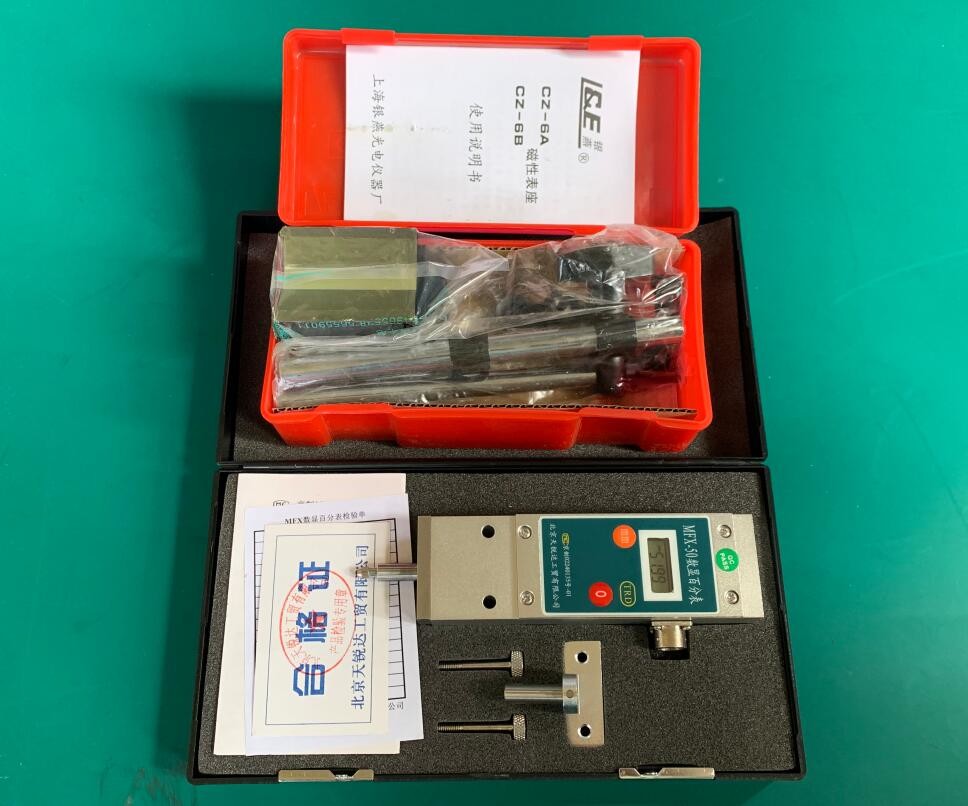

    5. Displacement senor

    Characteristic


    1. high-performance testing device for the field of pile static load testing in various engineering industries
    2. It provides high test accuracy, high security, stable performance, friendly interface and convenient operation.
    3. Test data graphs and waveforms are convenient and clear for browsing with curve reversal and translation supported.
    4. Provides various printing formats such as graphs, schedules, summary tables, and custom report formats.
    5. Support single pile vertical compression load test, single pile vertical pull load test, single pile horizontal cyclic load test, anchor pull testing, composite foundation load test, deep (shallow) flat plate load test, In-situ load test, rock foundation load test, self-balance test, etc
    Security Static Load Tester For Stone Column Gravel Pile Composite Foundation Security Static Load Tester For Stone Column Gravel Pile Composite Foundation Security Static Load Tester For Stone Column Gravel Pile Composite Foundation

    Product Purposes

    ◆ Pressure resistance, pull resistance, horizontal and self-balanced static load test of single pile

    ◆ Static load test of shallow (deep) layer plate and rock foundation

    ◆ Static load test of treated foundation and composite foundation

    ◆ Pull - out test of rock bolt

    ◆ Floor and bridge load test


    Security Static Load Tester For Stone Column Gravel Pile Composite Foundation Security Static Load Tester For Stone Column Gravel Pile Composite Foundation
