    180kw Bottom Feed Vibro Flot Construction Accessories For Gravel Pile Compact Vibroflotation

    Ask Lasest Price
    Brand Name : BVEM
    Model Number : BJZC-BFS-400-180
    Certification : ISO 9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 300 sets per year
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    180kw Bottom Feed Vibro Flot Construction Accessories For Gravel Pile Compact Vibroflotation

    China manufacturer 180kW dry bottom feed vibroflot for gravel pile compact vibroflotaton


    TypeBJZC-BFS-400-180
    Power(kW)180
    Rotation speed(rpm)1200-1800
    Working pile diameter (mm)900-1200
    System pressure(bar)6
    Vibration force(kN)200-300
    Hopper volume(m³)1.2
    Pipe diameter(mm)DN250
    Control typeInverter Control
    Cooling-down methodCirculating water cooling
    Air flow rate(m³/min)10
    Vibrator size L/W/H(mm)2600×600×700
    The bin size L/W/H(mm)4800×1300×(1300-1500)
    Extension tube size L/W/H(mm)12000×300×600
    Weight (Standard part+Extension tube) (ton)9+3×n

    Overview


    Bottom feed vibroflotation method : during the construction of Vibroflotation Gravel Pile or vibroflotation sand pile, the filling material directly reaches the real-time hole bottom position of pile making through the filling pipe attached to the vibroflotation equipment, and the gravel pile or sand pile is carried out. The emergence and application of bottom feed vibroflotation method further expands the applicable scope of vibroflotation method in various projects.



    Bottom feed vibroflotation method-- bottom feed vibroflot--filling material


    Component parts of bottom feed vibroflot system


    The bottom bottom vibroflotation construction needs to be implemented by using the bottom feed vibroflotation integrated system. This integrated system consists of the following parts:


    (1) Vibro float system: it is composed of electric or hydraulic vibrator, extension tube, vibration damper and electric control system.

    (2) Feeding system: mainly composed of winch type and slide rail type lifting hopper.

    (3) Stone bin system: it is composed of double bin or single bin silo, material level meter and silo control system.

    (4) filling tube system: it is composed of filling tube and material tube and damper.

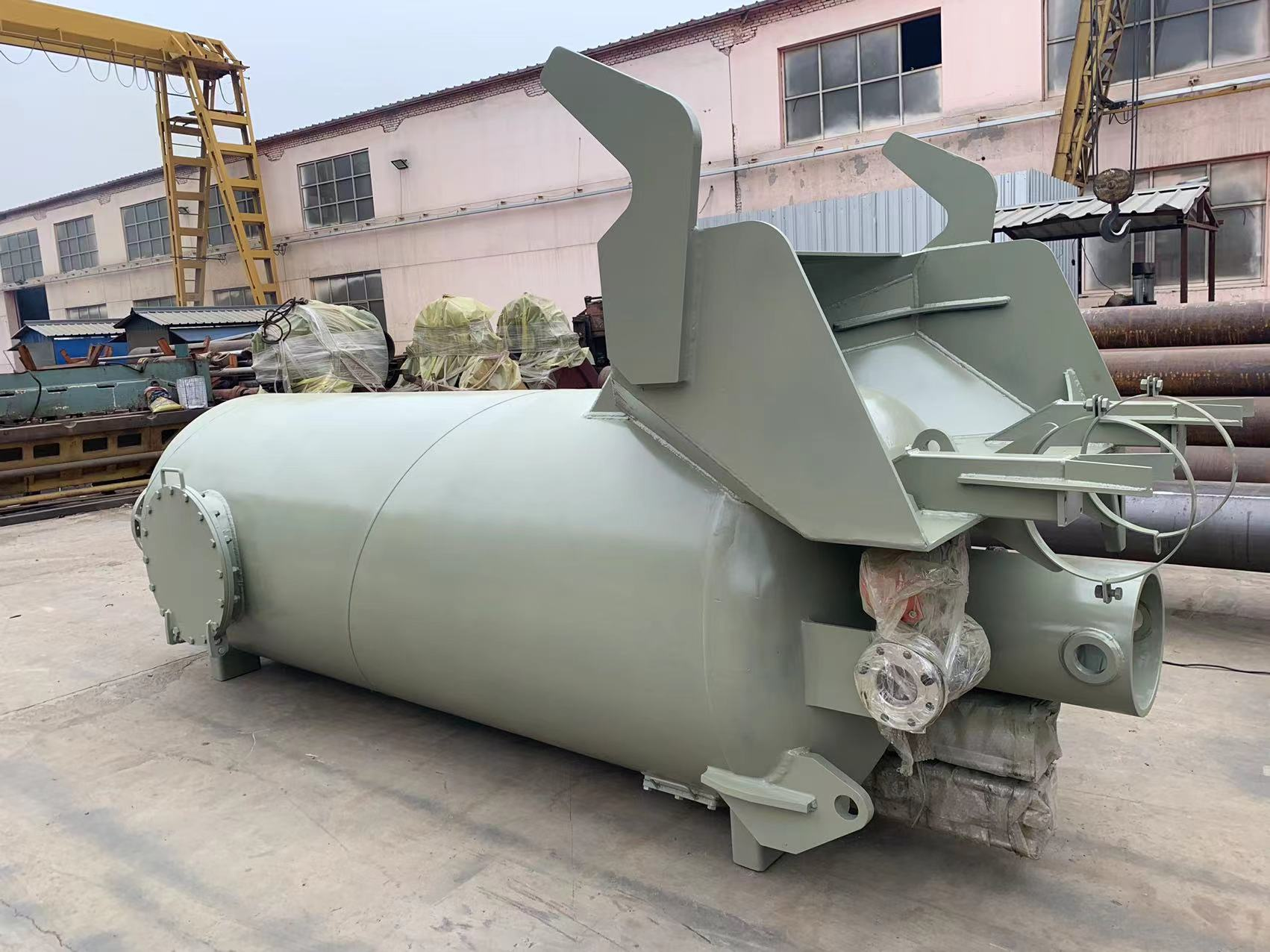

    Stone Bin- Feeding Mid tube- vibroflot with feeding bottom tube


    Description of bottom feed vibroflot construction accessories


    The supporting lifting equipment for the bottom feed vibroflotation device includes crawler crane, walking pile frame, rotary drilling frame, etc. There are also cases of supporting the use of excavators abroad. In addition, the bottom discharge vibroflotation construction also needs to be equipped with other supporting equipment and facilities, such as loader, generator, air compressor, water pump, etc. The construction personnel shall select the type, model and capacity of these equipment or facilities according to different conditions of the project.



    Auxiliary equipment display diagram for bottom feed vibroflot construction
