BVEM Bottom Feed Vibroflot for Silty Clay Soil Improvement Dry
Method Construction
| Type | BJZC-BFS-400-180 |
| Power(kW) | 180 |
| Rotation speed(rpm) | 1200-1800 |
| Working pile diameter (mm) | 900-1200 |
| Vibration force(kN) | 200-300 |
| Pipe diameter(mm) | DN250 |
Profile of Bottom Feed Vibroflotation:
As a extension of vibroflotation technique, bottom feed method
created a larger range of vibroflotation application. In terms of
its feature, vibroflotation can be conducted to treat the
foundation in those projects even under following situation:
1. Silty or silty clay soil with undrained shearing strength less
than 20Kpa
2. Underwater or offshore stone column construction
3. Projects under the strict controlling of pile diameter
4. Place where the water resource are used in limitation
5. Place where the waste water are strictly prohibit to discharge
Characteristics of bottom feed vibroflotation method
a) Realize dry construction
In vibroflotation construction, instead of high-pressure water
flushing, high-pressure air is used to assist the construction
process of hole forming and pile making. This new construction
technology enables the vibroflotation method to reduce the
dependence on water resources and avoid the generation of a large
amount of mud and sewage, which is more conducive to environmental
protection and green and civilized construction.

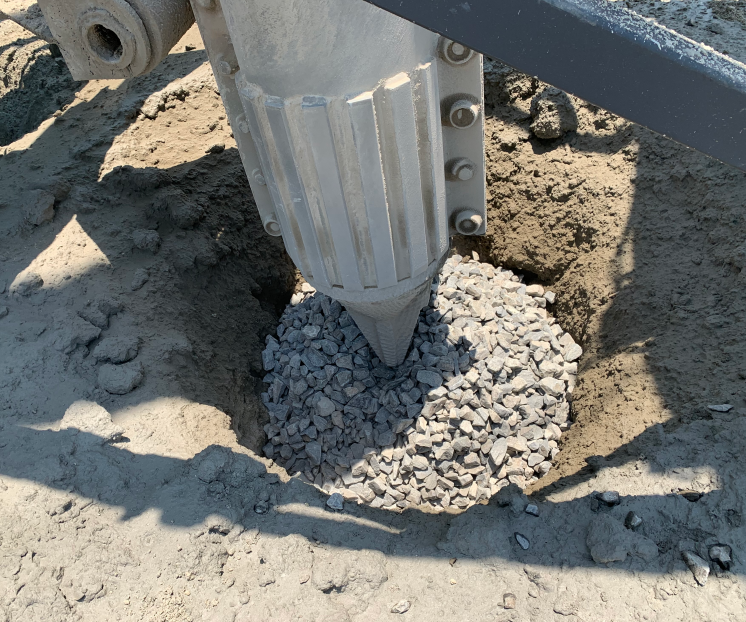

- Filling material in silt soil
The filling tube and pile making problems of vibroflotation method
in silt and mucky soil have been improved. The filling material is
directly transported to the pile making position by the bypass
pipeline provided by the equipment, and the shrinkage of the sludge
soil layer will not affect the smoothness of the falling of the
stone
Application
Dry Bottom Feed Vibroflotation Gravel Pile for Tiba Bay container
terminal in East Timor
The project is the third large-scale offshore bottom feed
Vibroflotation Gravel Pile Construction in the world after the Hong
Kong Zhuhai Macao Bridge Hong Kong artificial island project and
Israel Ashdod port project. A total of 12 sets of bottom feed
vibroflotation equipment were put into operation, including 7 sets
of offshore equipment. The construction lasted one year, more than
14000 offshore Vibroflotation Gravel Piles were completed, and the
construction automation and whole process quality control of
offshore Vibroflotation Gravel Piles were realized.
BVEM profile (Beijing vibroflotation engineer machinery co.,ltd)
BVEM focus on vibroflotation market and formed a business platform
with vibroflotation technique as core, on which there are three
main business including the manufacturing and integration of
vibroflotation equipment, sales and service for vibroflotation
equipment and foundation improvement construction undertaking. BVEM
is the largest manufacturer of electrical vibroflot in Asia and one
of the authors of Chinese vibroflot manufacturing code.
As an professional company in vibroflotation industry, our company
can provide users with full process services during the stages of
pre-sales and after-sales as well, including vibroflotation design,
construction scheme formulation, vibroflot and relevant equipment
selection advice, installation and commissioning of the vibroflot,
as well as the construction guidance and maintenance training.
