Electrical Bvem Top Feed Vibroflot Equipment 130kw 377mm For Reducing Liquefaction Hazards

Beijing Vibroflotation Engineering Machinery Limited Company
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Electrical Bvem Top Feed Vibroflot Equipment 130kw 377mm For Reducing Liquefaction Hazards from wholesalers

    Buy cheap Electrical Bvem Top Feed Vibroflot Equipment 130kw 377mm For Reducing Liquefaction Hazards from wholesalers
    • Buy cheap Electrical Bvem Top Feed Vibroflot Equipment 130kw 377mm For Reducing Liquefaction Hazards from wholesalers
    • Buy cheap Electrical Bvem Top Feed Vibroflot Equipment 130kw 377mm For Reducing Liquefaction Hazards from wholesalers

    Electrical Bvem Top Feed Vibroflot Equipment 130kw 377mm For Reducing Liquefaction Hazards

    Ask Lasest Price
    Brand Name : BVEM
    Model Number : BJV130E-377
    Certification : ISO 9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T, MoneyGram
    Supply Ability : 600 sets per year
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Electrical Bvem Top Feed Vibroflot Equipment 130kw 377mm For Reducing Liquefaction Hazards


    BVEM Top Feed Vibroflot 130kw 377mm Electrical Type for Reducing Liquefaction Hazards


    130kW 377mm Top Feed Electric Vibroflot Spec.
    TypePower
    (kW)
    Rated current(A)Max rotation speed(rpm)Max amplitude
    (mm)
    Vibration power(kN)Weight (kg)Outer diameter(mm)Length(mm)
    BJV130E-3771302551450-180019180-27619003773355

    Soil improvement


    The main goal of most soil improvement techniques used for reducing liquefaction hazards is to avoid large increases in pore water pressure during earthquake shaking. This can be achieved by densification of the soil and/or improvement of its drainage capacity.

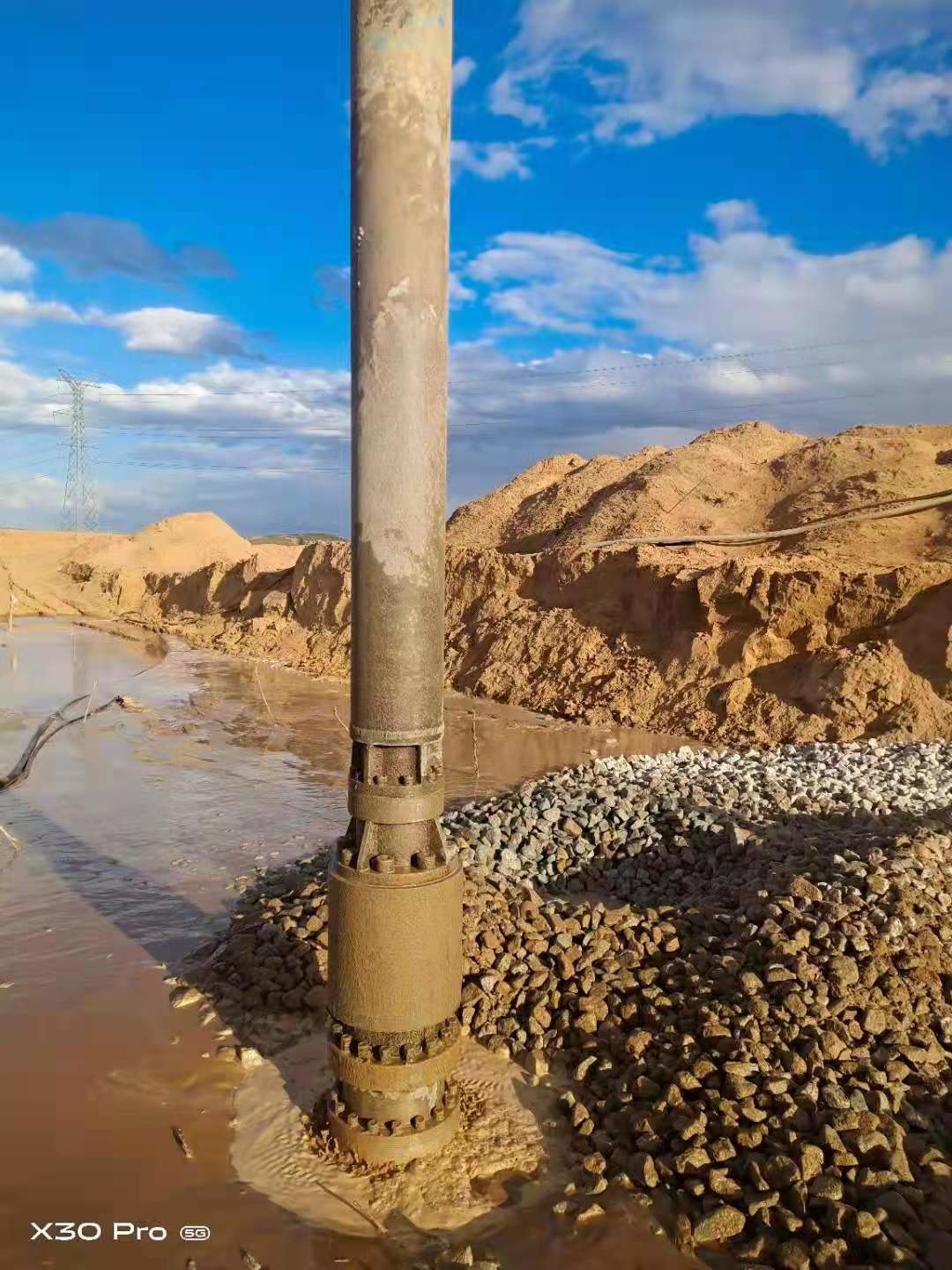

    Vibroflotation involves the use of a vibrating probe that can penetrate granular soil to depths of over 100 feet. The vibrations of the probe cause the grain structure to collapse thereby densifying the soil surrounding the probe. To treat an area of potentially liquefiable soil, the vibroflot is raised and lowered in a grid pattern. Vibro Replacement (right, HB) is a combination of vibroflotation with a gravel backfill resulting in stone columns, which not only increases the amount of densificton, but provides a degree of reinforcement and a potentially effective means of drainage.


    Electrical Bvem Top Feed Vibroflot Equipment 130kw 377mm For Reducing Liquefaction Hazards Electrical Bvem Top Feed Vibroflot Equipment 130kw 377mm For Reducing Liquefaction Hazards


    BVEM· The top-level researcher of Vibrator in China


    Researched and produced vibrators in power of 30KW,55KW,75KW since 1977 to 2005
    Researched and produced 150kw vibrator in 2006
    Researched and produced 180kw vibrator in 2009
    Produced Bottom Feed Vibrator with double lock pressure bunker in 2012
    Researched and produced 260kw vibrator in 2014
    Researched and produced Z125 Hydraulic-driven vibrator in 2014
    Lauched Vibrator performance testing equipment in 2014


    With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.
