Product Description:

Bottom Feed Vibroflot is an advanced tool for soil improvement and ground improvement. With a maximum depth of customization, it is made of durable stainless steel and equipped with circulating water cooling system, powered by 180kW 3 phase motor for increased productivity. It is particularly suitable for replacement stone column applications. With its innovative design, Bottom Feed Vibroflot can improve the bearing capacity of the soil, and enhance the stability of the ground.

Features:

The Bottom Feed vibro-replacement is a special method realized by using BOTTOM FEED VIBROFLOTATION DEVICE, which can fill the stones from the outlet located at the bottom of the vibroflot. It mainly used for under water vibroflotation construction or silt clay soil improvement with non-drainage shear strength less than 20kpa.

Under the pushing action of air pressure, the backfill gravel start from the stone bin equipped at the top of vibroflot, go pass through the feeding mid-tube set inside of vibroflot, finally fill out to the bottom of borehole from the outlet located at the bottom of vibroflot

Used for the silty clay soil condition where the shearing strengthen of non-drainage less than 20Kpa

Used for under-water vibro construction

Technical Parameters:

Applications:

Bottom Feed Vibroflot is a powerful vibratory pile driver, manufactured by BVEM, with model number BJZC-BFS-V400-180. It is certified by ISO and has a minimum order quantity of one set. The packaging details are wooden case and the delivery time is 15-30 days. This Vibroflot has a frequency of 50/60 Hz, inverter drive control mode, 3 phase power, and 180 kW power. It is mainly used for stone column pile installation, replacing existing stone columns, and other related activities. This product is reliable and efficient for these activities and offers a cost-effective solution to construction projects.

Support and Services:

Whole process service

Geological analysis
BVEM’s geological experts support clients on the professional analysis of soil situation and give the suggestion of feasible solution.

Vibroflotation design
By analysis and calculation result, help clients formulate vibroflotation design scheme, including the pile layout, depth of pile, diameter of pile and volume of feeding stone etc., and quality control method as well as testing method.

Equipment selection
In terms of situation of engineering, with consideration of technology, cost and construction period requirement, recommend the vibroflots model with suitable capacity and high cost performance.

Construction Scheme
According to the situation of engineering, formulate the feasible construction organization scheme, including the number of construction unit, stages and sequence of construction.

Installation&Commissioning
Service engineer reach job-site to guide the installation and commissioning of equipment, make sure equipment normal operation.

Construction Guiding
Engineers with full of construction experience demonstrate the operation of vibroflotation and train the operators of clients, help clients understand construction process and the quality control method.

China Vibroflot manufacturer:

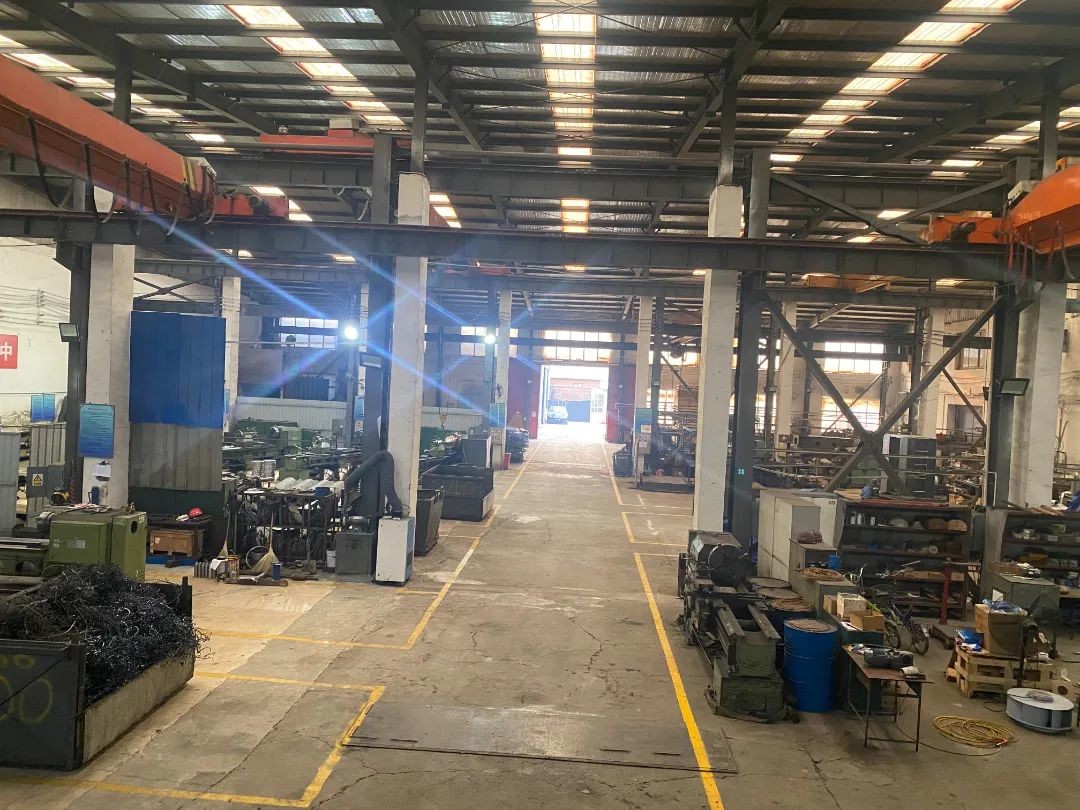

Beijing Vibroflotation Engineering Machinery Co., Ltd

BVEM· A pioneer to optimize construction of vibroflotation method
1.In 1997, the construction of the dam in the second phase of the three gorges project was carried out in the process of 30m deep throwing sand blasting
2.For the first time in 2001, the chimney foundation of the dingzhou power plant of 240m was strengthened by vibro - compaction method
3.In 2005, we developed the first integrated bottom feed vibroflot of China, the vibroflotation method began to treat the soft base of the soil whose Cu(shear strength) is less than 20KPa
4.In 2007, hydraulic vibroflot was used to handle the foundation of the pudu river power station,.This is the first time the treated depth achieved 32.7m in China
5.In 2014, the first YZ125KW hydraulic vibroflot was developed.

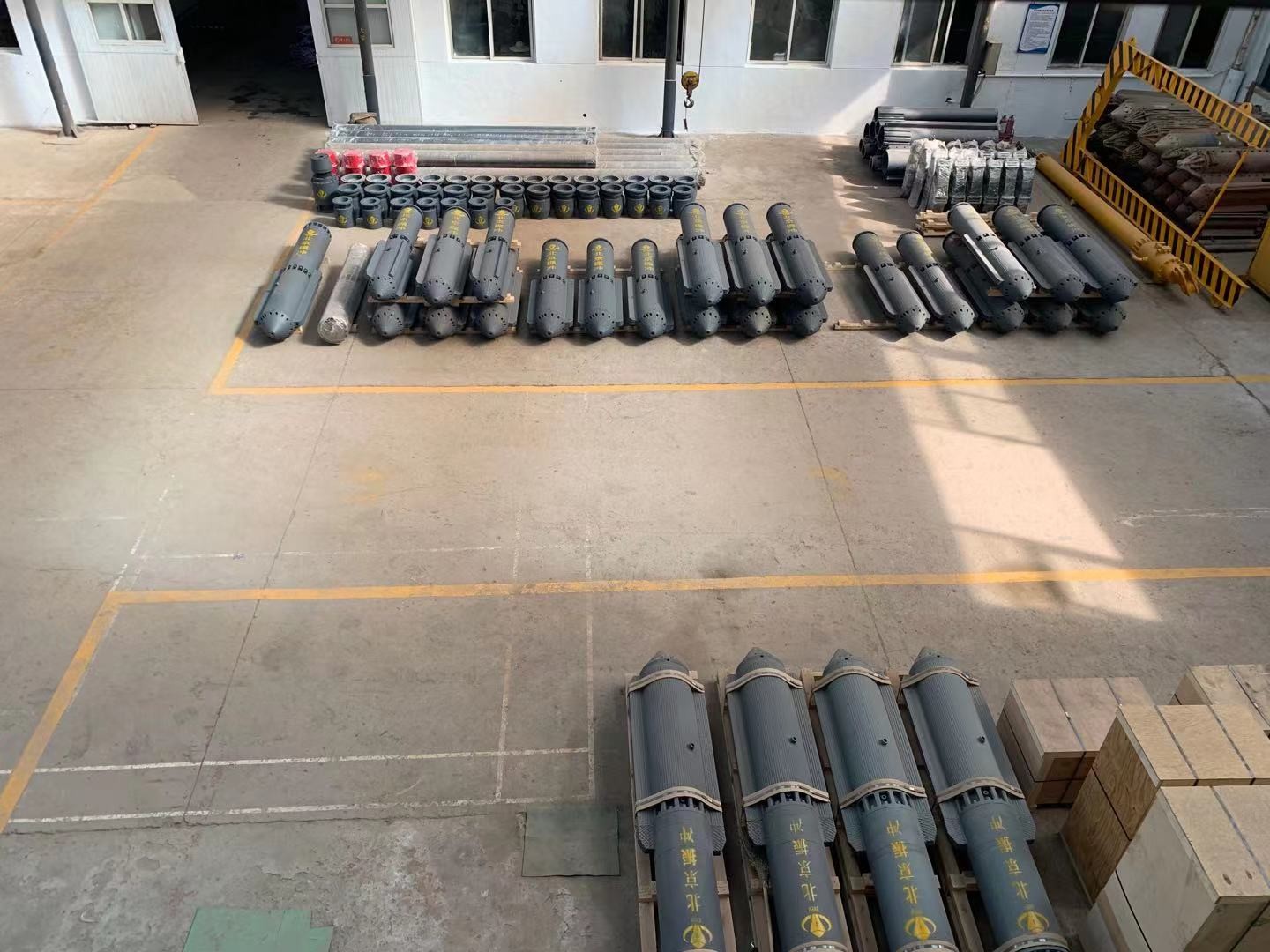

With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.
